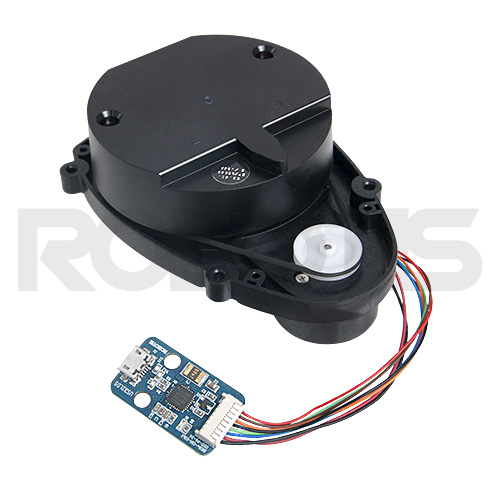

360 Laser Distance Sensor LDS-01

Robotis Components
Robotis

The 360 Laser Distance Sensor LDS-01 is a 2D laser scanner capable of sensing 360 degrees that collects a set of data around the robot to use for SLAM (Simultaneous Localization and Mapping). It supports USB interface and is easy to install on a PC.

> Read more
Order
Site Reference : RA_GEN005
Manufacturer Reference : 903-0258-000

Out of stock

360 Laser Distance Sensor LDS-01 Robotis

  • 360 Laser Distance Sensor LDS-01 is a 2D laser scanner capable of sensing 360 degrees that collects a set of data around the robot to use for SLAM (Simultaneous Localization and Mapping) and Navigation.
  • The LDS-01 is used for TurtleBot3 Burger, Waffle and Waffle Pi models.
  • It supports USB interface(USB2LDS) and is easy to install on a PC.
  • It supports UART interface for embedded baord.



Robots Turtlebot 3 Robotis



360 Laser Distance Sensor LDS-01 Robotis: general characteristics

  • Operating supply voltage 5V DC ±5%
  • Light source Semiconductor Laser Diode(λ=785nm)
  • LASER safety IEC60825-1 Class 1
  • Current consumption 400mA or less (Rush current 1A)
  • Detection distance 120mm ~ 3,500mm
  • Interface 3.3V USART (230,400 bps) 42bytes per 6 degrees, Full Duplex option
  • Ambient Light Resistance 10,000 lux or less
  • Sampling Rate 1.8kHz
  • Dimensions 69.5(W) X 95.5(D) X 39.5(H)mm
  • Mass Under 125g





LDS-01 Robotis 360 Laser Sensor: Performance Measurement

  • Items Specifications
  • Distance Range 120 ~ 3,500mm
  • Distance Accuracy (120mm ~ 499mm) ±15mm
  • Distance Accuracy(500mm ~ 3,500mm) ±5.0%
  • Distance Precision(120mm ~ 499mm) ±10mm
  • Distance Precision(500mm ~ 3,500mm) ±3.5%
  • Scan Rate 300±10 rpm
  • Angular Range 360°
  • Angular Resolution 1°

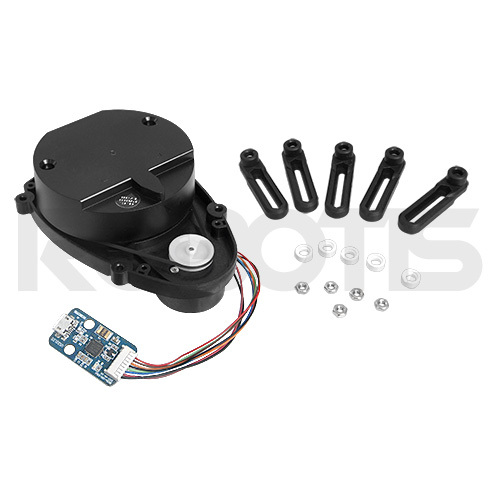

  • LDS-10 1
  • USB2LDS 1
  • USB Micro B Cable 1
  • Bolt PHS M2.5x16K 5
  • Nut M2.5 5
  • PCB support IBB-01 5
  • Spacer ring 5
