DJI Ronin 2 Professional Stabilizer

DJI Ronin 2: professional stabilizer

DJI's Ronin 2 is the sequel to the revolutionary gimbaled Ronin. The new version implements the latest technological achievements and increases the comfort and versatility of gimbaled work. The improved high-torque motors allow the installation of several different cameras and are able to withstand high overloads (occurring during extreme driving) and strong winds. In addition, Ronin 2 now uses the same batteries as the Inspire 2.

The Ronin 2 will stabilize the camera without any problems. Supported cameras are RED Dragon, ARRI Alexa Mini, Black Magic Ursa Mini, Canon C300, Sony FS7 and many others.
The motors of the Ronin 2 professional stabilizer are even eight times more powerful than in the previous versions of the camera. The gimbal is able to perfectly stabilize the camera with a weight of up to 13.6 kg for winds over 120 km/h. With this power, the camera maintains an incredible angular accuracy of 0.02°.

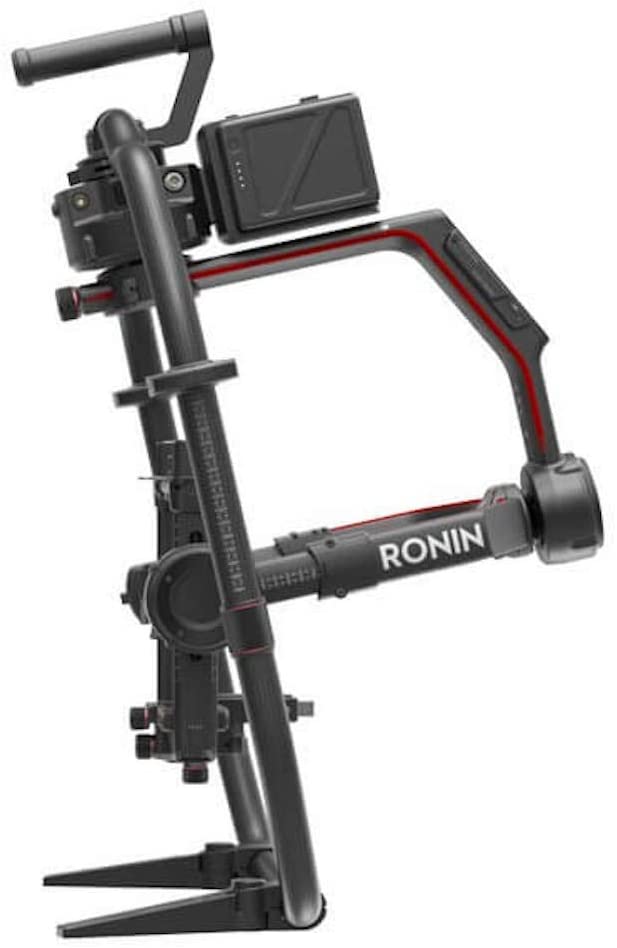

The handle allows Ronin 2 to stand on its own and can be easily removed if the lower part of the handle is not needed. Ronin 2 also has extensive compatibility with UAVs, cars, cranes and various transport systems by cable, steadicam, etc.

DJI's Ronin 2 Stabilizer: Technical Specifications

• Maximum load - 13.6 kg
• Angular vibration range - 0.02°.
• Maximum controlled rotational speed - Pan axis: 400°/sec; tilt axis: 360°/sec; roll axis: 360°/sec
• Mechanical rotation range - Pan axis: 360° continuous rotation, tilt axis: 135°, roll axis: 220°.
• Controlled rotation range - Pan axis: 360° continuous rotation; tilt axis from 45° to -135°; roll axis from ±45
• The dimensions of the cardan shaft -
• Without handle: 350 mm x 416 mm x 530 mm
• With handle: 630 mm x 416 mm x 720 mm
• Weight -
• Without handle: 4.2 kg
• With one handle: 5.5 kg
• Operating temperature - from -20°C ~ 50°C
• Camera base dimensions -
• Maximum depth from the centre of gravity of the camera plate: 245 mm
• Maximum height measured from the top of the camera plate: 165 mm
• Maximum width: 180 mm
• Accessory sockets -
• Camera cage 14.4 V x 4 (total 8 A),
• Motor panel 12.6 V x 2 (total 4 A), P-Tap 12.6 V (8 A)
• Power supply Intelligent battery 4280 mAh, 22.8 V
• Data Transfer - WiFi 2.4 GHz/5.8 GHz, Bluetooth 4.0, USB type C
• PC Assistant Compatibility - Windows 7 or higher, Mav OS X 10.11 or higher
• Mobile Assistant Compatibility - Android 4.4 or higher, iOS 9 or higher
• Modes of operation - Suspended, standing, suitcase, manual, car, aerial, tripod and steadicam modes​

DJI Ronin 2 Professional: in the box

• Ronin 2 Gimbal
• Grip
• Remote control
• TB50 Smart Batteries
• Double battery holder TB50
• Battery charger
• Quad Loading Centre
• Battery charger power cable
• Ronin 2 Power Hub
• Upper camera crossbar
• Camera base plate
• Accessory mount
• 15 mm rod
• Focusing rod mount 15mm
• Universal mount Ronin 2
• Top mounting block
• MotionBlock
• Waterproof protective case
• Mini power supply cable ARRI ALEXA
• ARRI ALEXA Mini Start/Stop cable
• RED power cable
• RED RCP control cable
• Power cable Ronin 2
• 2-pin power cable
• DC power cable
• Triple D-Tap junction box
• SDI-In cable
• SDI-Out cable
• USB C-type data cable
• UART to D-BUS cable
• Hex Tool​
