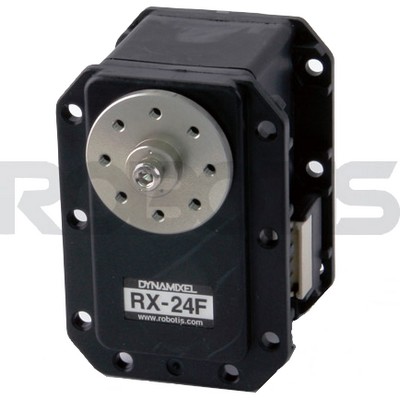

Dynamixel RX-24F Servo
Torque, speeds that defy competition and reliability well established: the high-end ROBOTIS servos, designed to provide a flawless experience, now offers a high speed version of the RX-28 servo, one of the fastest servo ROBOTIS, with an amazing speed of 126RPM (no load speed).
The servos have RS485 Daisy Chain serial interface for reliable communication and include a protocol with several Compliance and Status parameters that can be queried and configured at speeds up to 1Mbps.
H/W Specification
• Weight: 67g
• Dimension: 35.5mm x 50.8mm x 41.8mm
• Resolution: 0.29°
• Gear Reduction Ratio: 193 : 1
• Stall Torque: 26kgf.cm (at 12V, 2.4A)
• Running Degree
- 0° ~ 300°
- Endless Turn
• Running Temperature: -5ºC ~ +85ºC
• Voltage: 9V~12V
• Command Signal: Digital Packet
• Protocol Type: RS485 Asynchronous Serial Communication (8bit,1stop, No Parity)
• Link (Physical): RS485 Multi Drop Bus
• ID: 254 ID (0~253)
• Communication Speed: 7843bps ~ 1 Mbps
• Feedback: Position, Temperature, Load, Input Voltage, etc.
• Material: Full Metal Gear, Engineering Plastic Body
• Standby current: 50 mA
Complete Specifications and Manual
• For Complete Servo Specifications and User's Manual, please consult the Robotis RX Series Support Site.
1x Dynamixel RX-24F Servo
