Tetrix Max Programmable Robotics Set 43053

TETRIX MAX Educational Set

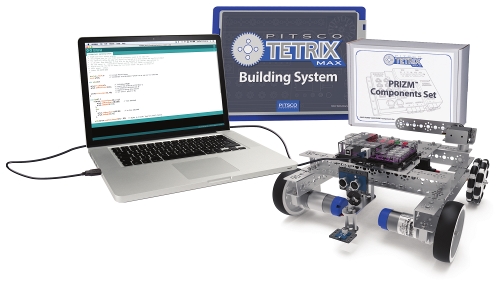

The TETRIX MAX Programmable Robotics Set contains the PRIZM® Robotics Controller and the building elements needed for students to engineer, code, and test solutions using real-world robotics technology. Designed to provide one student or a team of up to four students with the hardware to create autonomous robots, this set is complete with two sensors and a programming guide that introduces the basics of coding through a series of hands-on projects.

Educational values:

• Science: Designing solutions based on criteria and constraints, Modeling, Using estimates, Variables
• Technology: Coding, Accuracy, Attributes of design, Troubleshooting
• Engineering: Defining problems, Engineering design, Prediction, Problem-solving, Prototyping
• Math: Accuracy, Formulas, Logic, Interpreting statements

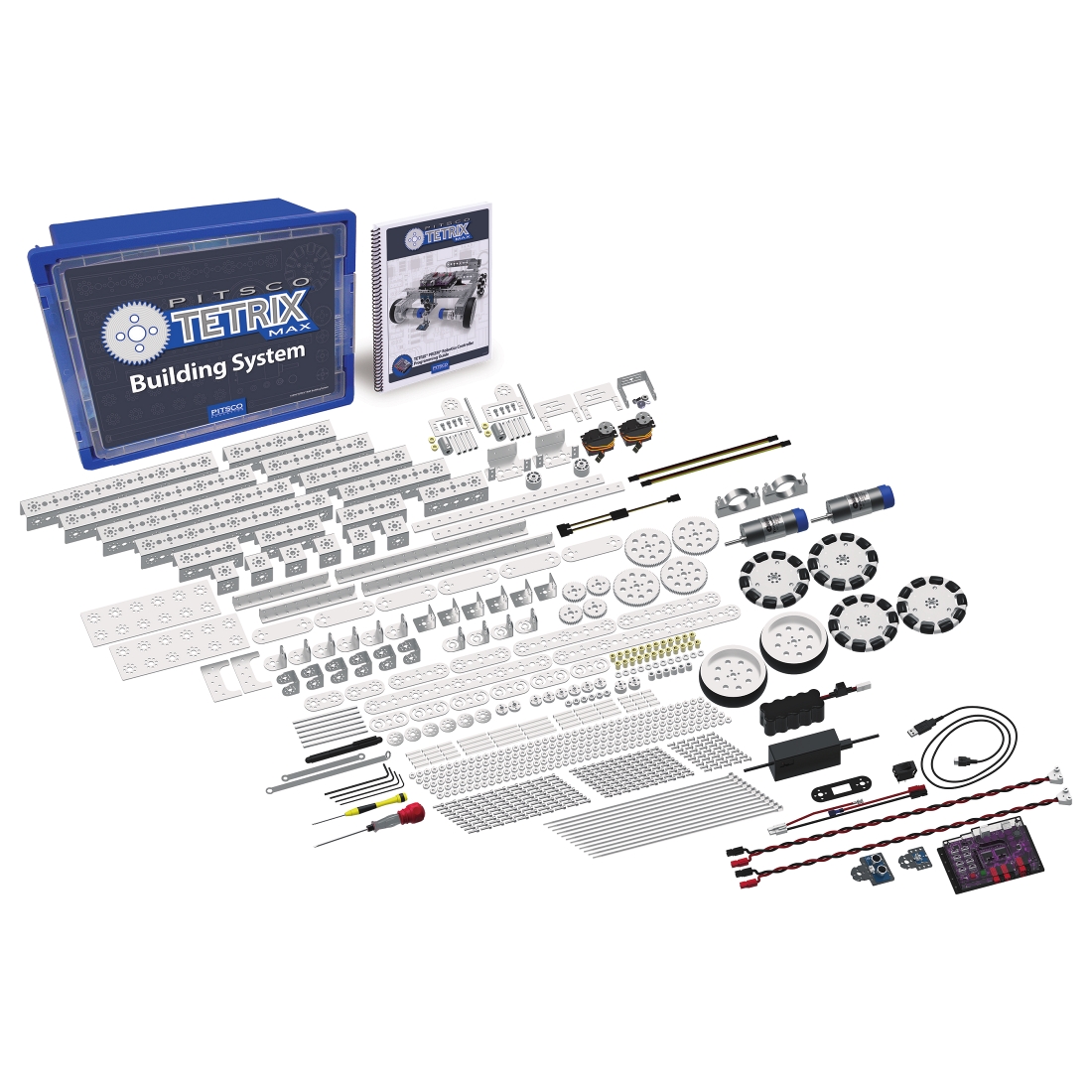

The educational kit TETRIX MAX contains :

• PRIZM controller with USB cable
• Grove Line Finder and Ultrasonic Sensors
• 670+ building elements
• Structural, motion, and hardware elements including a variety of wheels, gears, channels, flats, and connectors
• Two TorqueNADO motors, motor cables, and two 180-degree standard-scale servo motors
• Rechargeable battery pack and charger
• Battery switch and assembly tools
• Sturdy storage bin, lid, and sorting tray
• Printed guide to programming the PRIZM controller using the Arduino Software (IDE), which is compatible with Windows, Mac OS X 10.7 or newer, and Linux devices that contain a USB port

Educational resources TETRIX MAX

Pitsco offers a variety of resources to help schools integrate their educational kits into school curricula. Find all the resources for the TETRIX MAX educational Set below.

Resources to download

• TETRIX PRIZM Arduino Library
• CAD 3D file, MAX programmable set
• Arduino IDE software

Ressources to consult

• TETRIX PRIZM quick start guide
• TETRIX PRIZM programming guide
• TETRIX MAX programmable robotics set parts index
• TETRIX MAX ball autonomous challenge

Contrôleur TETRIX PRIZM

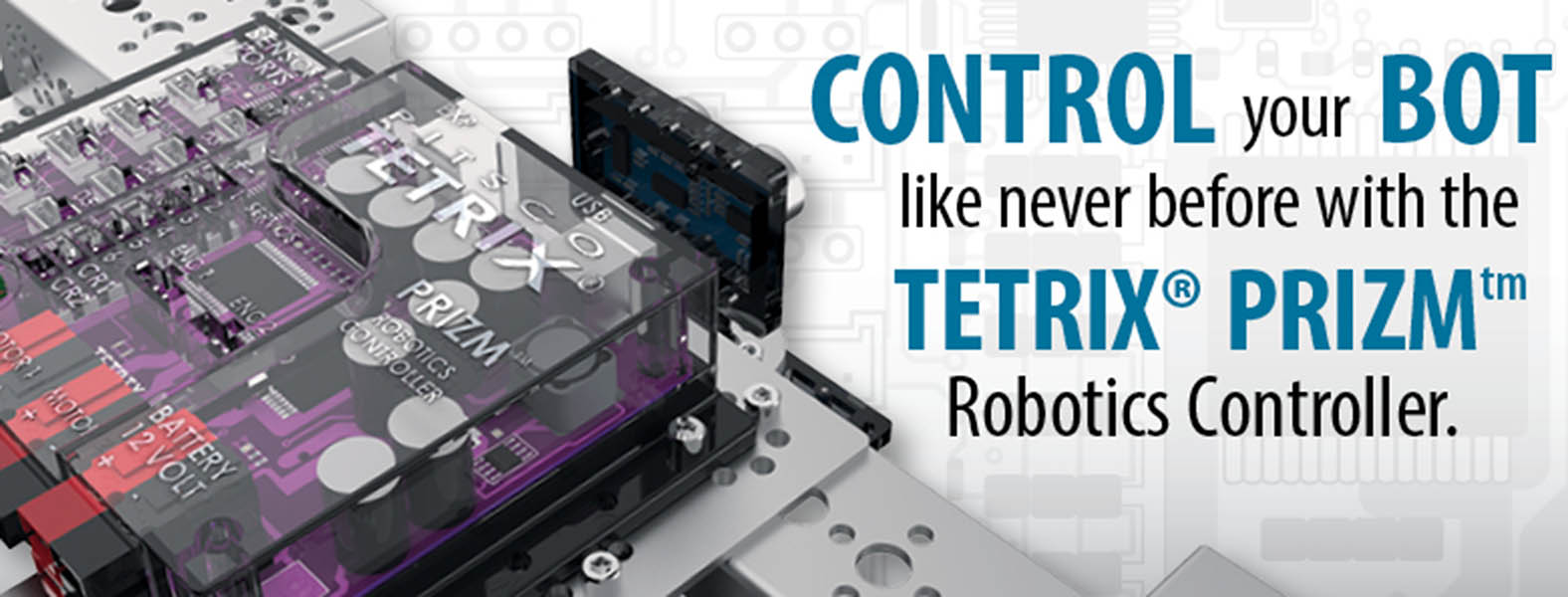

The TETRIX PRIZM Robotics Controller is a fully integrated, programmable brain for your bot that features a variety of motor, servo, encoder, and sensor ports with convenient connectors that enable you to control your robot's behavior like never before. This controller offers the best of both worlds – a learning tool that is powerful yet easy to use. With PRIZM you can take learning to new heights by creating robots that are smarter, more precise, and as real world as it gets.

The controller is specifically developed for use with the TETRIX MAX building system and comes with programming support for the Arduino Software (IDE), which is compatible with Windows, Mac OS X 10.7 or newer, and Linux devices that have a USB port.

The PRIZM Robotics Controller features

• 32 KB flash programmable memory
• ATmega328P processor with Arduino Optiboot bootloader installed
• 4 digital sensor ports (D2 can be used as a serial port) and 3 analog sensor ports
• 1 I2C port, 1 USB programming port, 1 motor controller expansion port, and 2 quadrature encoder input ports
• 2 high-current DC motor control ports
• 6 standard control servo ports and 2 continuous rotation (CR) servo ports
• Battery connection port (additional port used to daisy-chain power to other devices)
• Programmable Start button (green) and a non-programmable Stop/Reset button (red)
