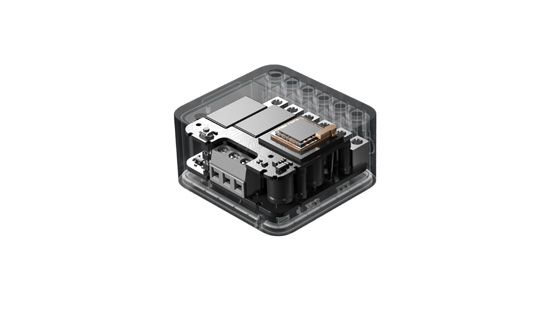

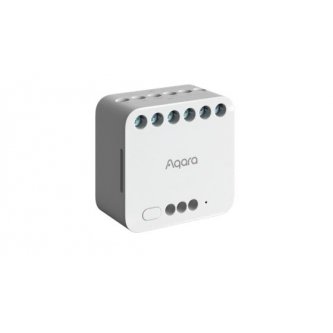

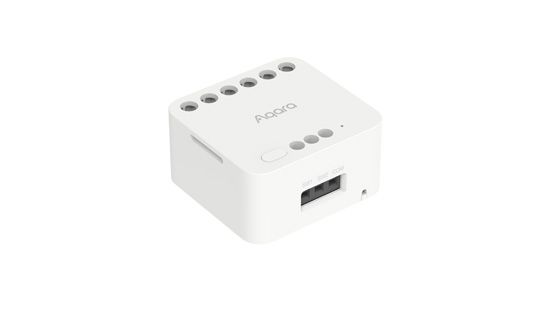

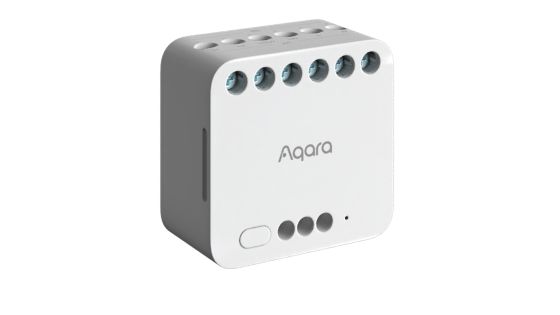

Aqara T2 Dual Relay Module

Aqara T2 Dual Relay Module - Intelligent control and energy management

The Aqara Dual Relay T2 module turns your traditional appliances into smart devices thanks to Zigbee connectivity.

It controls a range of equipment such as lights, blinds, switches and sockets, while enabling precise monitoring of energy consumption. Its flexible installation and compatibility with Apple Home, Matter and Alexa make it an ideal solution for a connected home.

• Versatile use: Intelligent control of ceiling lights, wall sockets, blinds and domestic appliances.
• Home automation compatibility: Works with Apple Home, Matter via bridge, Google Home and Alexa.
• Motor management: Ideal for electric blinds, roller shutters and garage doors.
• Energy monitoring and optimisation: Measures electricity consumption and adjusts voltage and current thresholds.
• Advanced safety: Protection against power surges and automatic cut-off in the event of an anomaly.
• Wireless switch mode: Transforms an existing wall switch into an intelligent scene controller.
• Flexible installation: Designed for standard wall boxes (86 mm and US standards) and compatible with DIN rails.

Features of the T2 Dual Relay Module

• Wireless protocol: Zigbee
• Dimensions: 45.5 × 48 × 24 mm
• Maximum power: 2500W (incandescent lamp) / 250W (LED and CFL) / 1/4 HP (motors)
• DC power supply: 24-30V: Max. 10A, Max 300W / 30-60V: Max. 1A, Max 60W
• Operating temperature : -10 °C ~ 40 °C
• Humidity : 0 ~ 95% RH, non-condensing
• Zigbee frequency : 2405-2475 MHz
• Zigbee output power : ≤ 13 dBm

Legal information

• Apple Home, Google, Alexa and Matter are not natively supported, but are compatible via a Zigbee bridge.
• Installation of the T2 is reserved for users familiar with electrical installation. We recommend that you call in a professional electrician and use these instructions as a reference.
• Note that the sensor or switch connected to the S1/S2/COM contacts must support the voltage supplied to the relay.
• The T2 can withstand a maximum current of 10A. A wall box approximately 60mm deep is recommended. If the existing box is too shallow, you can try using an H1 wireless switch or an ultra-thin wall switch to control the relay.
