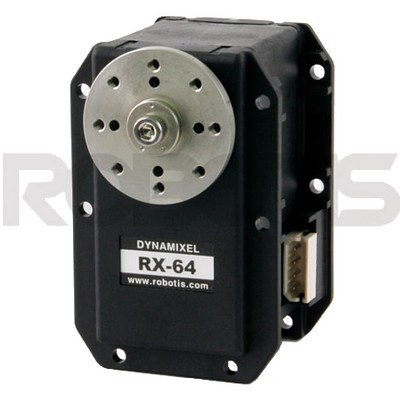

Dynamixel RX-64 Servo

Robotis
Robotis

Torque, speeds that defy competition and reliability well established: the high-end ROBOTIS servos, designed to provide a flawless experience, strikes again with the RX-64.

> Read more
Order
Site Reference : RA_BIO018
Manufacturer Reference : 902-0008-001

Out of stock

The servos have RS485 Daisy Chain serial interface for reliable communication and include a protocol with several Compliance and Status parameters that can be queried and configured at speeds up to 1Mbps. The RX-64 Servo offer up 64kgf.cm of holding and is the most powerful servo on the RX line of Servos. (if you need higher torque, Robotis has the Dynamixel EX line with over 100kgf.cm of torque).




Specifications



• Position and Speed resolution: 1024 steps
• Resolution: 0.3°
• Operating Angle Range: 300°
• Max Current: 1200mA
• Physical Bus Link: 4-Wire, Multi-drop, RS485 @ 1mbps
• Feedback : Position, velocity, torque, temperature, voltage
• Weight: 116g
• Gear Reduction: 1/200
• Holding Torque: 53kg-cm @ 15V , 64kg-cm @ 18V
• Speed: 0.198Sec/60° @ 15V, 0.162Sec/60° @ 18V


Complete Specifications and Manual

• For Complete Servo Specifications and User's Manual, please consult the Robotis RX Series Support Site.

1x Dynamixel RX-64 Servo
