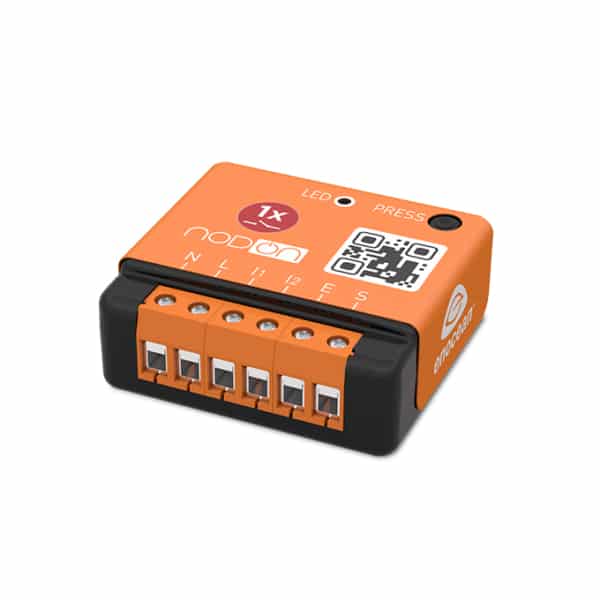

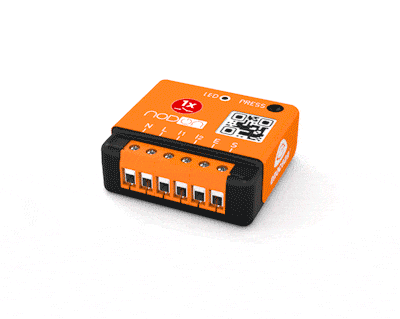

EnOcean 1 Channel Relay Switch

An EnOcean relay switch to control everything

This EnOcean 1-channel dry contact relay switch ensures that you can control absolutely all your electrical equipment from a simple controller such as a EnOcean remote control or a EnOcean wall switch.

• High switching capacity of 2300W that will allow you to switch on and off almost all your electrical devices

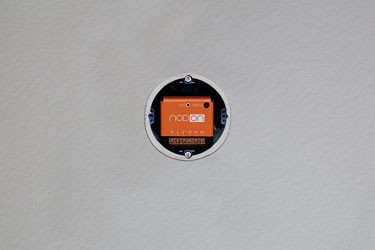

• This ultra-compact built-in module is no more than 17mm thick
• The potential-free output expands all possibilities of connected objects, from light to boiler and garage door.
• Using the latest EnOcean specifications, this NodOn Built-in Module can be installed without any physical intervention from the installer

With this NodOn EnOcean 1 channel relay switch, you can:

• Make your light installation a connected lighting system that you can control remotely
• Turn off or power any electrical appliance directly from the wall via a NodOn wall socket
• Control your boiler, central heating or garage door remotely with the potential-free output

Features of NodOn's EnOcean 1-channel relay switch

• Power supply: 230V AC +/-10% - 50Hz
• Switching capacity: 2.3kW (Resistive Load)
• Intrinsic consumption: <1W
• Operating temperature: 0°C to 40° C
• Radio Protocol: EnOcean® 868.3MHz Bidirectional
• EEP : D2-01-0F
• Range: 30m
• 2 analog inputs for existing wired switch(s)
• Dimensions: 40*45*16,9mm

Certifications of the NodOn 1-channel dry contact relay switch

Europe

• IN60669-1:1999+A1:02+A2:08
• IN60669-2-1-1:2004+A1:09+A12:10
• EN300220-2 V3.1.1.1
• EN301489-01 V2.1.1.1
• IN301489-03 V2.1.1.1
• EN62479:2010
