Gravity Huskylens By DFRobot
HuskyLens is an easy-to-use AI computer vision sensor. It is equipped with multiple functions, such as face recognition, object tracking, object recognition, line tracking, colour recognition and tag recognition (QR code). In addition, HuskyLens is equipped with a 2.0-inch IPS display. So you don't need to use a PC to adjust settings. Enjoy the convenience it brings, what you see is what you get!
With the HuskyLens, your projects have new ways to interact with you or your environment, such as interactive gesture control, autonomous robot, intelligent access control and interactive toy.
HUSKYLENS
HuskyLens is an easy to use AI artificial vision sensor. It is equipped with multiple functions such as face recognition, object tracking, object recognition, line tracking, color recognition and tag recognition (QR code).
- HuskyLens is quite easy to use. You can change various algorithms by pressing the function button. Click on the learn button, HuskyLens starts learning new things. After that, HuskyLens is able to recognize them.

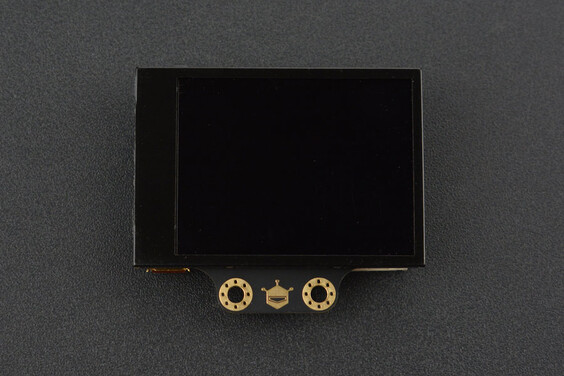

- In addition, HuskyLens is equipped with a 2.0-inch IPS screen. So you don't need to use a PC for setting the parameters. Enjoy the convenience it brings, what you see is what you get!

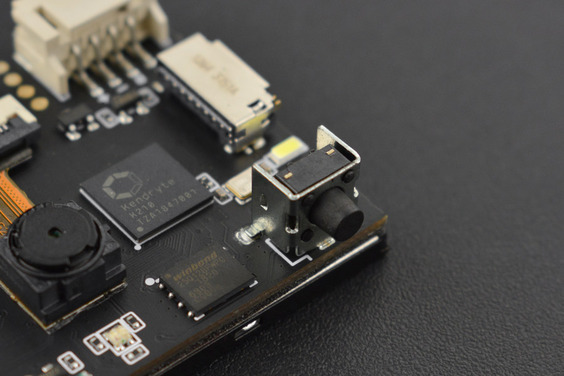

- HuskyLens adopts the next generation of Kendryte K210 specialized AI chip. The performance of this special AI chip is 1,000 times faster than the STM32H743 chip when executing a neural network algorithm. Thanks to this excellent performance, it is capable of capturing even fast-moving objects.
- With the HuskyLens, your projects have new ways to interact with you or your environment, such as interactive gesture control, autonomous robot, intelligent access control and interactive toy. There are so many new applications to explore.
- HuskyLens' object tracking skills can be used to learn specific gestures. It is able to recognize learned hand movement patterns and feed their positions. With this data, it's never been easier to create impressive interactive projects.
- HuskyLens can detect and follow lines. Line tracking is not something new, there are many excellent methods and algorithms for this scenario. However, most of them require tedious setting of parameters. This time, HuskyLens offers a new way of doing line tracking: just click on the button, and it starts learning and following new lines. Let's enjoy the pleasure of doing with HuskyLens!
- HuskyLens can be the eyes of robots. It allows your robot to recognize you, understand the commands of your hand gestures, or help you put things in order, etc. With HuskyLens, nothing is impossible!
Technical specifications
- Processor: Kendryte K210

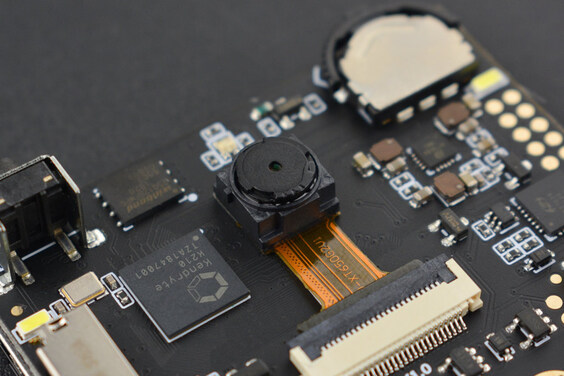

- Image Sensor: OV2640 (2.0Megapixel Camera)
- Supply Voltage: 3.3~5.0V
- Current Consumption (TYP): 320mA@3.3V, 230mA@5.0V (face recognition mode; 80% backlight brightness; fill light off)
- Connection Interface: UART, I2CDisplay: 2.0-inch IPS screen with 320*240 resolution
- Built-in Algorithms: Face Recognition, Object Tracking, Object Recognition, Line Tracking, Color Recognition, Tag Recognition

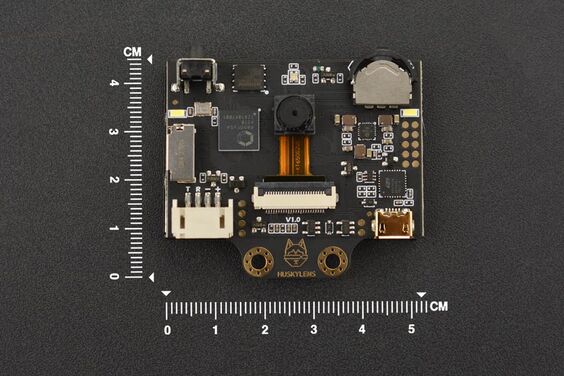

- Dimension: 52mm * 44.5mm / 2.05 x 1.75inch
Resources :
