Horizon Energy Monitor: measure and display data

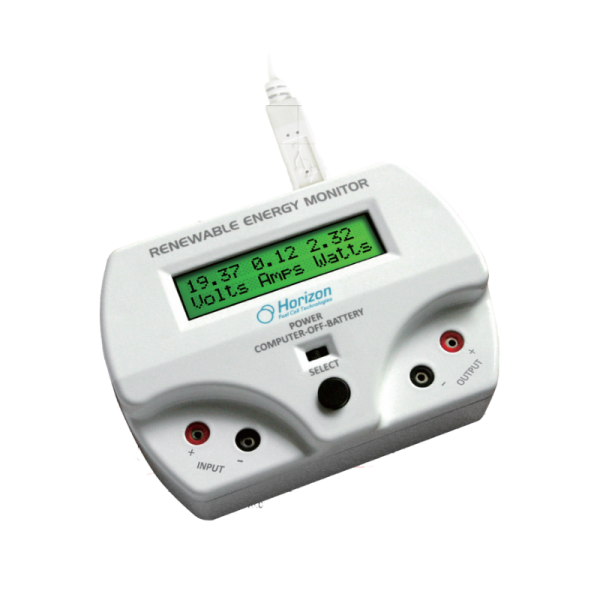

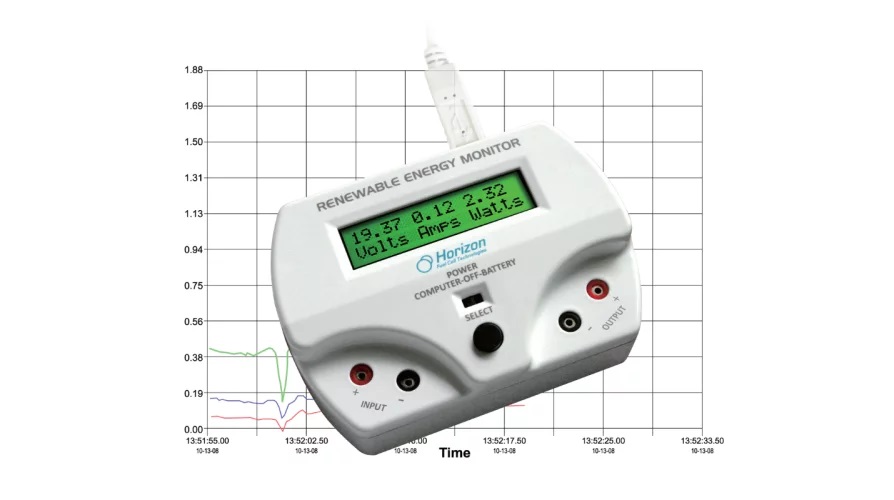

The Horizon Energy Monitor is an educational evaluation device designed to measure and display the performance characteristics of experiments in real time. It features a two-line LCD screen to display measurements clearly and accurately, either directly on the unit or via a Windows PC. Ideal for complementing Horizon science kits such as the Wind to Hydrogen Science Kit (FCJJ-56) and the Renewable Energy Science Kit (FCJJ-37), this monitor simplifies data collection and makes it easily accessible.

Battery-powered and equipped with a USB port, the Horizon Energy Monitor can be used with or without a computer, indoors or out. It provides an immediate, graphical method of recording data without complex formulas or calculations. Students can now quantify voltages, currents, power, joules, resistances and even RPM speeds of miniature wind turbines and solar panels in real time, making experiments more interactive and educational.

• Measurement display: Voltage, current, power, joules, resistance and speed in RPM.
• Compatibility: Works with all Horizon educational kits.

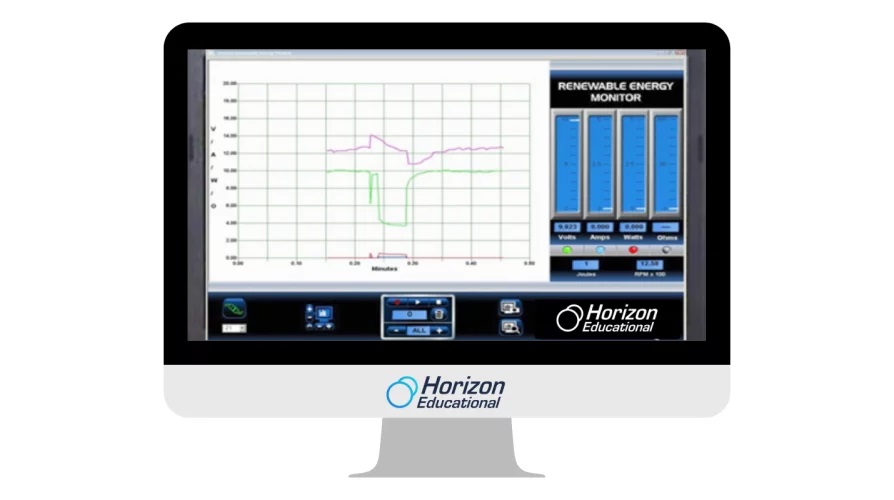

• PC display: Measurements displayed graphically on a Windows computer.
• Indoor and Outdoor Use: Can be used with or without a computer.
• Data Export: Export to Excel or CSV.
• Video Recording: Record and playback experiments for analysis.
• LCD Screen: Clear and accurate display of measurements.

Features of the Horizon Energy Monitor kit

Components Included :

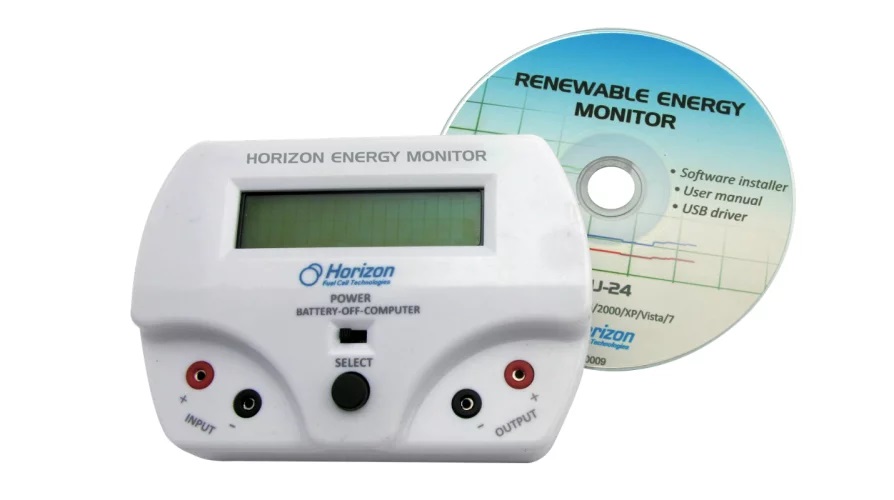

• Horizon Energy monitor with LCD screen for data display
• LCD screen displays: voltage (V, mV), current (A, mA), power (W, mW), speed in RPM, resistance (Ohm), energy (joules)
• 1-metre USB cable
• CD-ROM with Horizon Data Acquisition software
• CD-ROM with full renewable energy curriculum
• 2mm flexible connection wires

Compatibility :

• Compatible with all Horizon Education Kits
• Compatible with Windows and Mac operating systems using Windows Parallel or Boot Camp

The Horizon Energy Monitor is an essential tool for any classroom or laboratory looking to learn more about renewable energy concepts. With its ability to display and record data in real time, it makes scientific experiments more interactive and educational. Easy to use indoors or outdoors, with or without a computer, this monitor offers a complete solution for measuring and analysing the performance of energy systems. Experience advanced science education with the Horizon Energy Monitor.
