Servomotor Dynamixel MX-12W

Dynamixel Servo Robotis : MX-12W

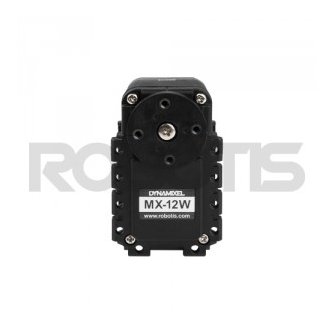

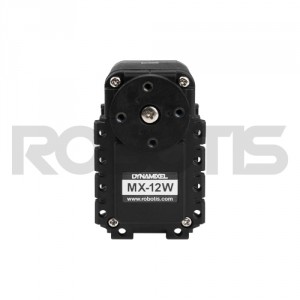

The Servo Dynamixel MX-12W by Robotis is a robot exclusive smart actuator with fully integrated DC Motor + Reduction Gearhead + Controller + Driver + Network in one DC servo module.

MX-series is a new concept of DYNAMIXEL with advanced functions, such as precise control, PID control, 360 degree of position control, and high speed communication.

• Advanced durability, degree of precision, and wider control zone were achieved thanks to the newly applied CONTACTLESS ABSOLUTE ENCODER
• 360 degrees POSITION CONTROL without dead zone
• 4,096 PRECISE RESOLUTION by 0.088 degrees
• SPEED CONTROL at ENDLESS TURN MODE
• Reliability and accuracy were advanced in the position control through PID CONTROL
• High baud rate up to 4.5Mbps
• Shape of the AX-series + durability of the MX-series

For full details of the Robotis servomotor Dynamixel MX-12W, consult the dedicated sheet on the official website HERE.

Servo MX-12W: specifications​

• Model Name MX-12W
• MCU Cortex-M3 (72 [Mhz], 32 [bit])
• Input Voltage Min. [V] 10.0 / Recommended [V] 12.0 / Max. [V] 14.8
• Performance Characteristics Voltage [V] 12.0 / Stall Torque [N·m] - / Stall Current [A] - / No Load Speed [rpm] 470.0 / No Load Current [A] -
• Continuous Operation Voltage [V] - / Torque [N·m] - / Speed [rpm] - / Current [A] -
• Resolution Resolution [deg/pulse] 0.0879 / Step [pulse] 4,096 / Angle [degree] 360
• Position Sensor Contactless absolute encoder (12 [bit], 360 [deg]) / Maker : ams(www.ams.com), Part No : AS5045
• Operating Temperature Min. [°C] -5 / Max. [°C] 70
• Motor Cored
• Baud Rate Min. [bps] 8,000 / Max. [bps] 4,500,000
• Control Algorithm PID
• Gear Type Spur
• Gear Material Engineering Plastic
• Case Material Engineering Plastic
• Dimensions (WⅹHⅹD) [mm] 32 X 50 X 40
• Dimensions (WⅹHⅹD) [inch] 1.26 X 1.97 X 1.57
• Weight [g] 54.60
• Weight [oz] 1.93
• Gear Ratio 32 : 1
• Command Signal Digital Packet
• Protocol Type Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity)
• Link (Physical) TTL Level Multi Drop Bus
• ID 0 ~ 253
• Feedback Position, Temperature, Load, Input Voltage, etc
• Protocol version 1
• Operating Mode / Angle Wheel Mode：Endless turn / Joint Mode：360 [deg] / Multi-turn Mode：±28 [rev]
• Output [W] -
• Standby Current [mA] 60

MX-12W Robotis: compatible products

• Controller : CM-5, CM-510, CM530, CM-700, OpenCM9.04(+ OpenCM485 Expansion Board), OpenCR
• Interface : USB2Dynamixel, U2D2
• Consult the Dynamixel compatibility table HERE.
