Kitronik Servo:Lite Board For :MOVE mini

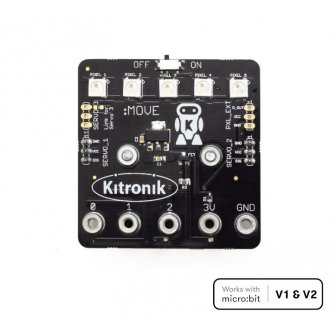

The BBC micro:bit Servo:Lite card is a basic card that allows you to connect and operate low power servos (servos must be capable of operating at 3.3V) with the BBC micro:bit. It is attached to the micro:bit by five bolts. If two servos are connected in the typical configuration, it can drive up to three servos if the 'ZIP' addressable LEDs are not used.

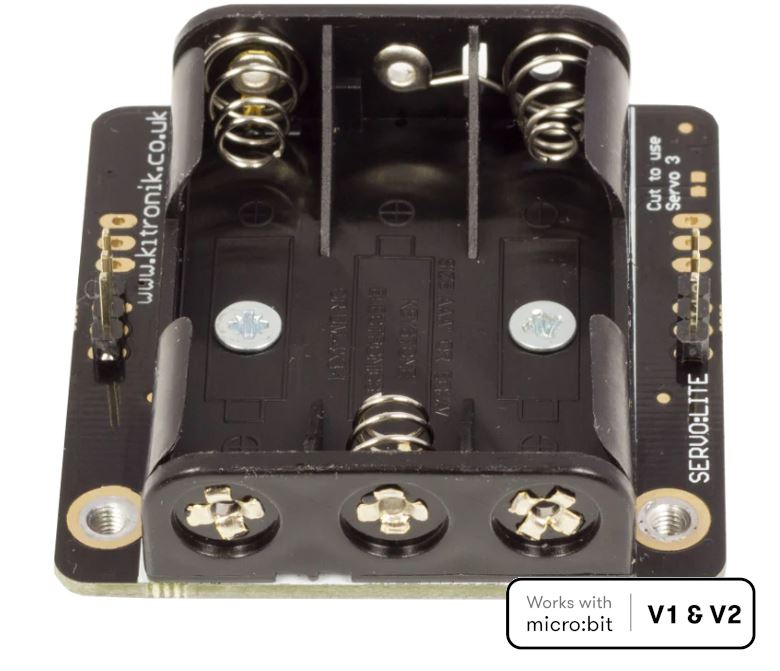

It is powered by three AAA batteries and also delivers power to the BBC micro:bit. The board has an on/off switch so the batteries do not deplete while not in use.
Servo:Lite card for :MOVE mini by Kitronik
The BBC micro:bit Servo:Lite card is a basic card that allows you to connect and operate low power servos (servos must be capable of operating at 3.3V) with the BBC micro:bit. It is attached to the micro:bit by five bolts. If two servos are connected in the typical configuration, it can drive up to three servos if the 'ZIP' addressable LEDs are not used.

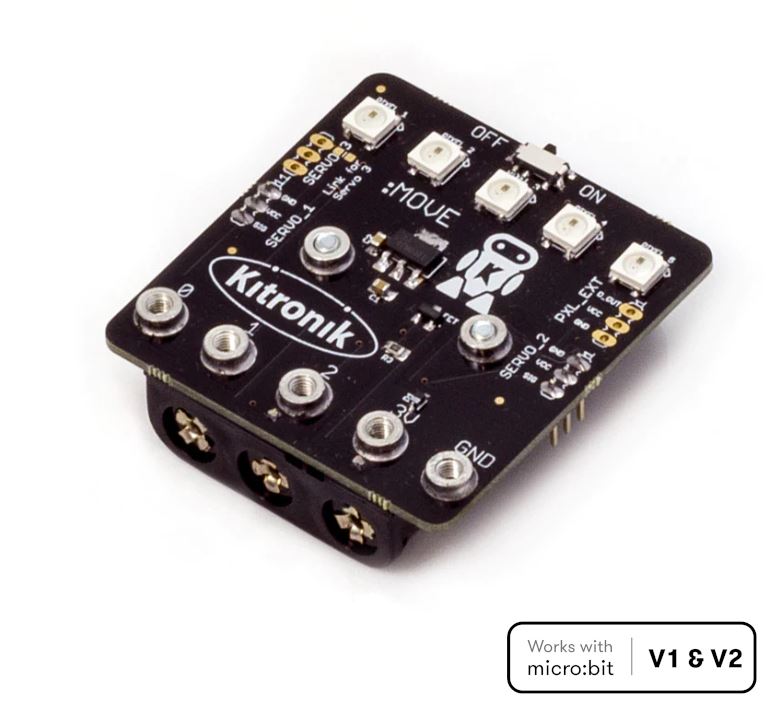

It is powered by three AAA batteries and also powers the BBC's micro:bit. The card has an on/off switch so that the batteries do not run down when not in use. The board also has 5 individually controllable RGB ZIP LEDs (NeoPixel compatible), and external ZIP LEDs can be attached if required.
We have created a number of tutorials and guides, which you can find in the resource area below. We have guides that explain how to operate a third servo and how to program the onboard ZIP LEDs.

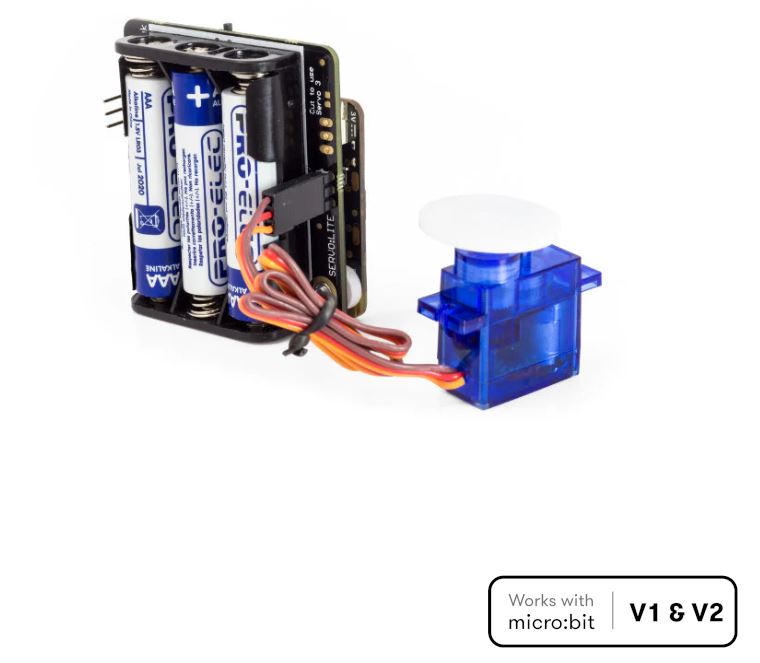

- Allows two servos to be connected in a standard configuration and can drive up to 3 servos if ZIP addressable LEDs are not required.
- Powered by 3 AAA batteries which also power the BBC microbit (not supplied).
- On/off switch.

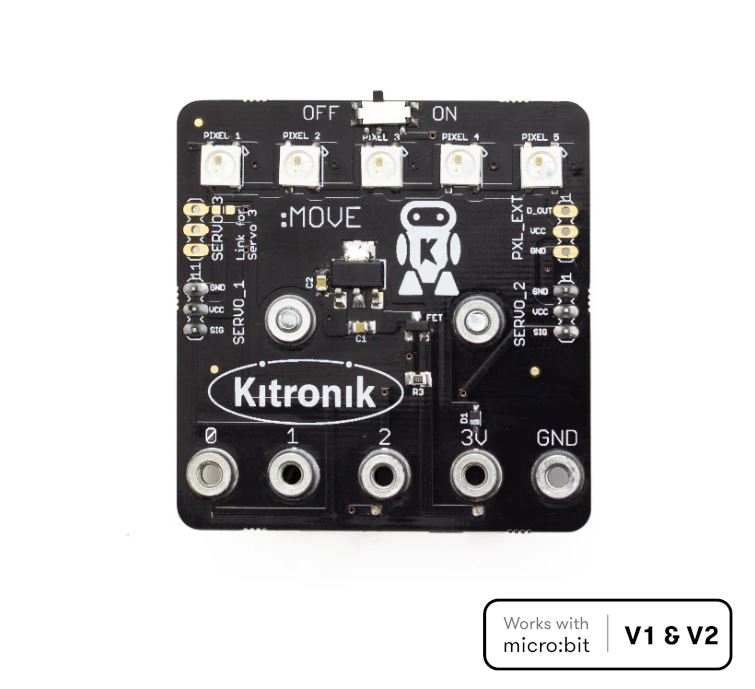

- 5 addressable RGB ZIP LEDs (NeoPixel compatible). Additional external ZIP LEDs can be connected to the board.
Contents and requirements of the Servo:Lite card package for :MOVE mini
Contents :
- 1 x Servo:Lite board with pre-mounted battery holder.
- 5 x Pozi Steel M3x8 screws with locknut.
- 1 x Perspex spacer.
Prerequisites :
- 3 x piles AAA.
- 1 x BBC microbit.
- Servos.
- Tournevis.
NOTE: Once the Servo:Lite card is attached to the microbit, there is a maximum space of 6mm for the plastic sleeve of the USB cable. The cable supplied in the official Go pack are both suitable.
Resources
- Kitronik Custom MakeCode Editor Servo Blocks (Use this URL to add them to the Editor).
- Guide For Kitronik Custom MakeCode Editor Servo Blocks.
- Getting Started With The Servo:Lite board.
- Guide For Controlling 3 Servos With The Servo:Lite board.
- Guide For Using Kitronik ZIP LEDs With The BBC microbit.
