Nybble Q Robot Cat Petoi

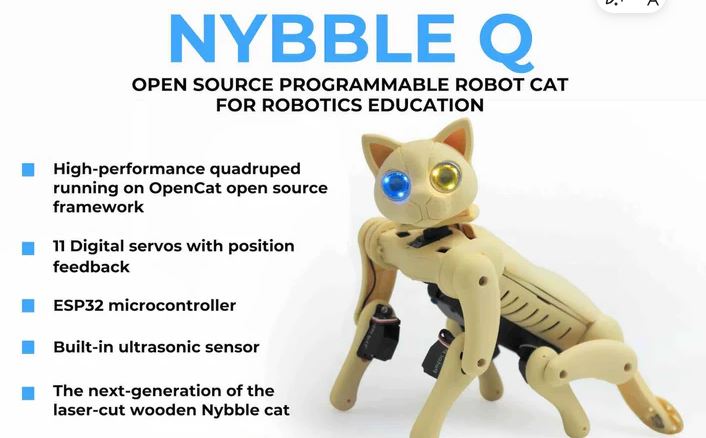

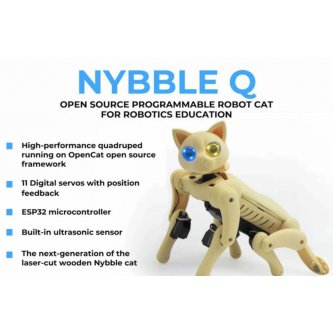

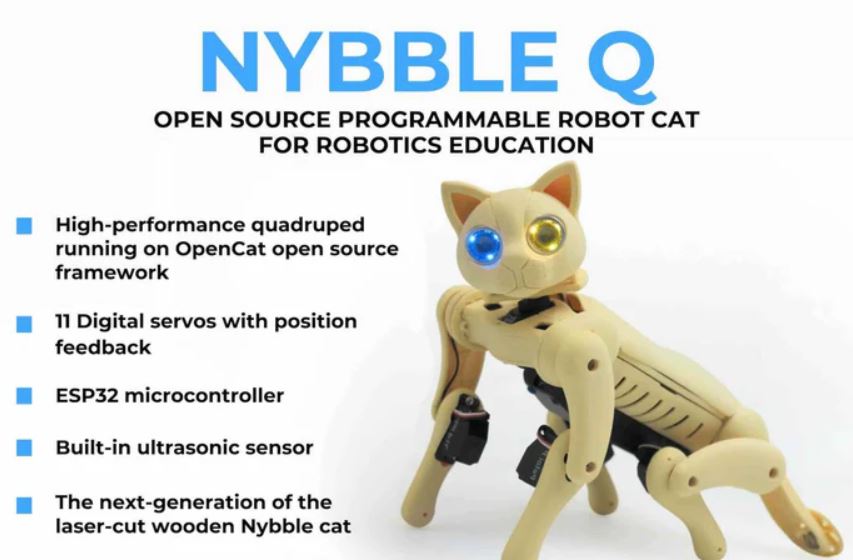

Nybble Q Petoi programmable cat robot

Discover Petoi's Nybble Q, the evolution of the famous Nybble wooden cat robot. Designed for learning robotics and coding, Nybble Q combines biomimetic design with a powerful open-source platform. With its 11 motorised joints and advanced microcontroller, it offers a unique interactive and educational experience for enthusiasts, engineering students and schools.

Lightweight, elegant and fully programmable, Nybble Q is ready to become your favourite learning companion, combining charm, intelligence and technical performance.

• Biomimetic quadruped cat robot with 11 motorised joints
• Intuitive programming via Petoi Coding Blocks, Arduino C++ and Python
• Lightweight, aesthetically pleasing wooden structure with DS031 metal servo motors
• Advanced connectivity with official Bluetooth/WiFi dongles and Raspberry Pi support
• Pre-programmed bionic behaviours: dynamic walking, 40+ skills, colour-changing eyes
• Interactive control: voice command, mobile app, touch and move interactions
• Compatible with micro:bit controller for enhanced control
• Complete educational platform with free educational content to learn programming and robotics

Nybble Q Petoi technical specifications

• Dimensions: 250 × 107 × 140 mm (10 × 4.2 × 5.5 inches)
• Weight: 320g (11. 2 oz)
• Frame material: Wood
• Number of motorised joints: 11
• Servo motors: DS031 metal, 11 units included
• Motor type: Cored, alloy gears
• Microcontroller: NyBoard V1 compatible with Arduino Uno (ATMega328PA)
• External EEPROM: 64Kbit
• IMU: 6-axis MPU6050
• PWM channels: 16
• On-board connectivity: Serial UART, I2C network, infrared receiver, buzzer
• Wireless connectivity: via official Bluetooth and WiFi dongles
• Raspberry Pi support : Yes
• Sensors: Built-in ultrasonic sensor
• Battery: 7.4V 1000mAh Li-ion pack, 1h battery life, charges in 2h (5V 1A USB charger not included)
• Connection cable: Micro-USB to USB included
• Programming environments: Petoi Coding Blocks, Arduino IDE, OpenCat Python API
• Compatible applications: Petoi Desktop App, Petoi Mobile App

Petoi's Nybble Q revolutionises robotics learning through its sleek design, advanced capabilities and compatibility with open-source environments. Offering a perfect balance between technical performance and accessibility, it is the ideal choice for anyone wishing to delve into the fascinating world of quadruped robotics.
