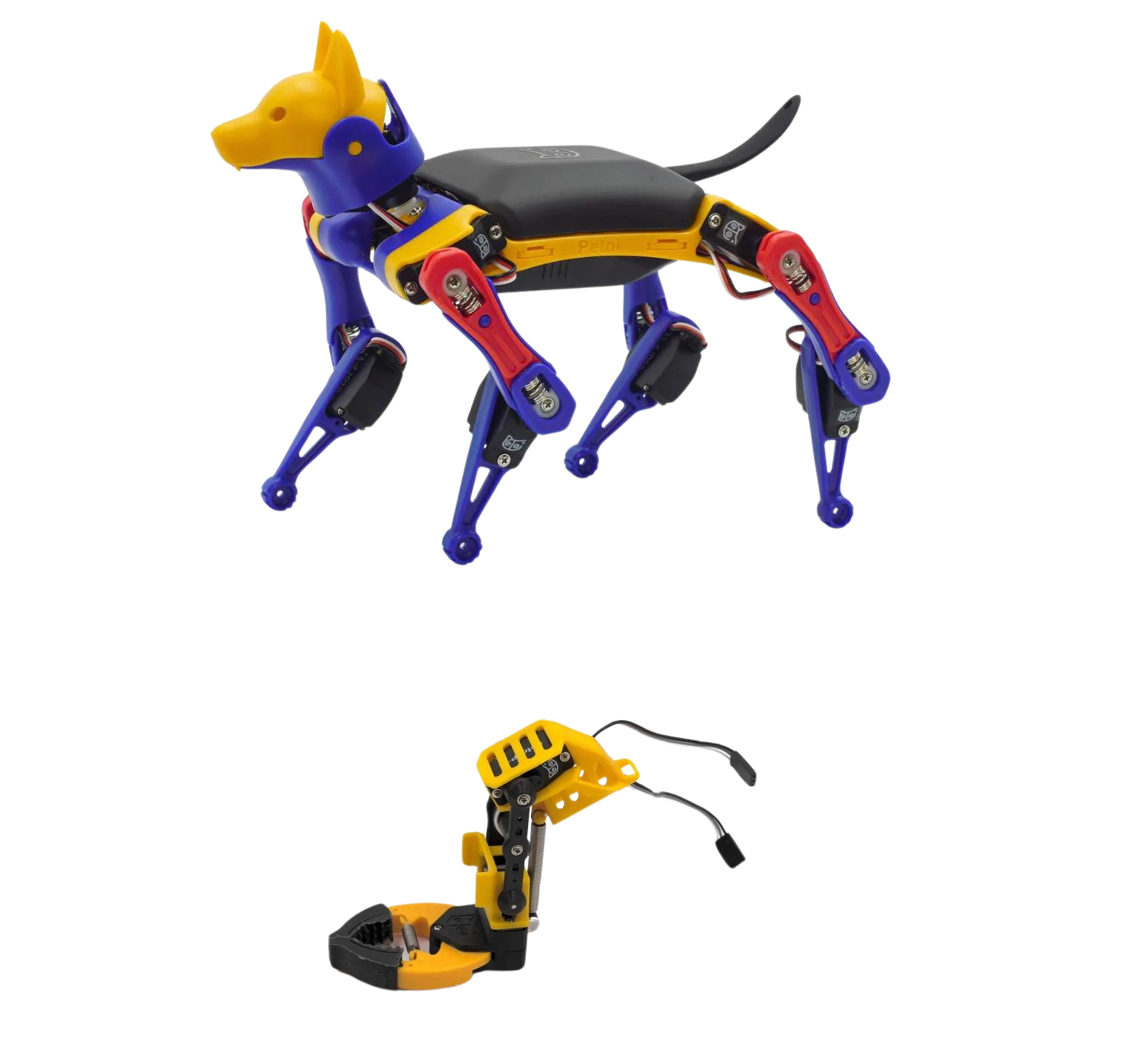

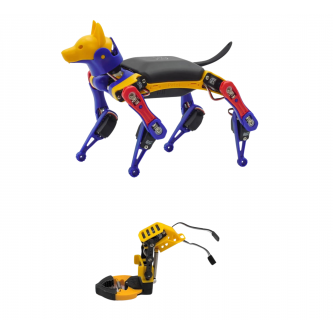

Petoi Bittle X V2 With Robotic Arm

Bittle X V2 Programmable Quadruped Robot + Robotic Arm with Gripper

Complete, scalable robotics platform combining quadruped locomotion and object manipulation

Petoi's Bittle X V2, together with its robotic arm with gripper, is an advanced educational robotics solution combining mobility and physical interaction. Thanks to its ultra-mobile quadruped design, precision servomotors and programmable articulated arm, this robot dog becomes a powerful tool for exploring modern robotics, from locomotion to object manipulation.

• Quadruped mobile design with 9 Lite servomotors for smooth movement
• Articulated 2-degree-of-freedom robotic arm with gripper for gripping and moving objects
• High-performance ESP32 microcontroller with integrated 6-axis IMU
• Cross-platform programming: block, Arduino IDE, OpenCat Python API
• Integrated Bluetooth & Wi-Fi connectivity, control via mobile app or desktop
• Modular, robust and colourful design - ideal for education and research

Technical specifications of the Bittle X V2 + Robotic Arm

• Robot dimensions: 200 x 110 x 110 mm
• Total weight: approx. 290 g (with arm)
• Locomotion servo motors: 9 x P1L (plastic)
• Arm servo motors: 2 x P1S metal alloy
• Main controller: ESP32-WROOM-32D Biboard, 520K SRAM, 16MB Flash
• Motion detection: 6-axis MPU6050 IMU
• Robotic arm: 2 axes, two-jaw gripper, yellow/black reinforced plastic structure
• Autonomy: Up to 1h with 7.4V 1000mAh Li-ion battery
• Charging: Micro-USB, 2h recharge
• Programming: Coding Blocks, Arduino IDE, OpenCat Python API
• Applications: Petoi Desktop App, Petoi Mobile App

This complete pack Bittle X V2 + robotic arm offers a unique platform for learning about quadruped robotics while exploring the basics of object manipulation. Ideal for enthusiasts, teachers or developers, this Petoi educational kit combines performance, flexibility and accessibility to help your projects or students progress in the exciting world of robotics.
