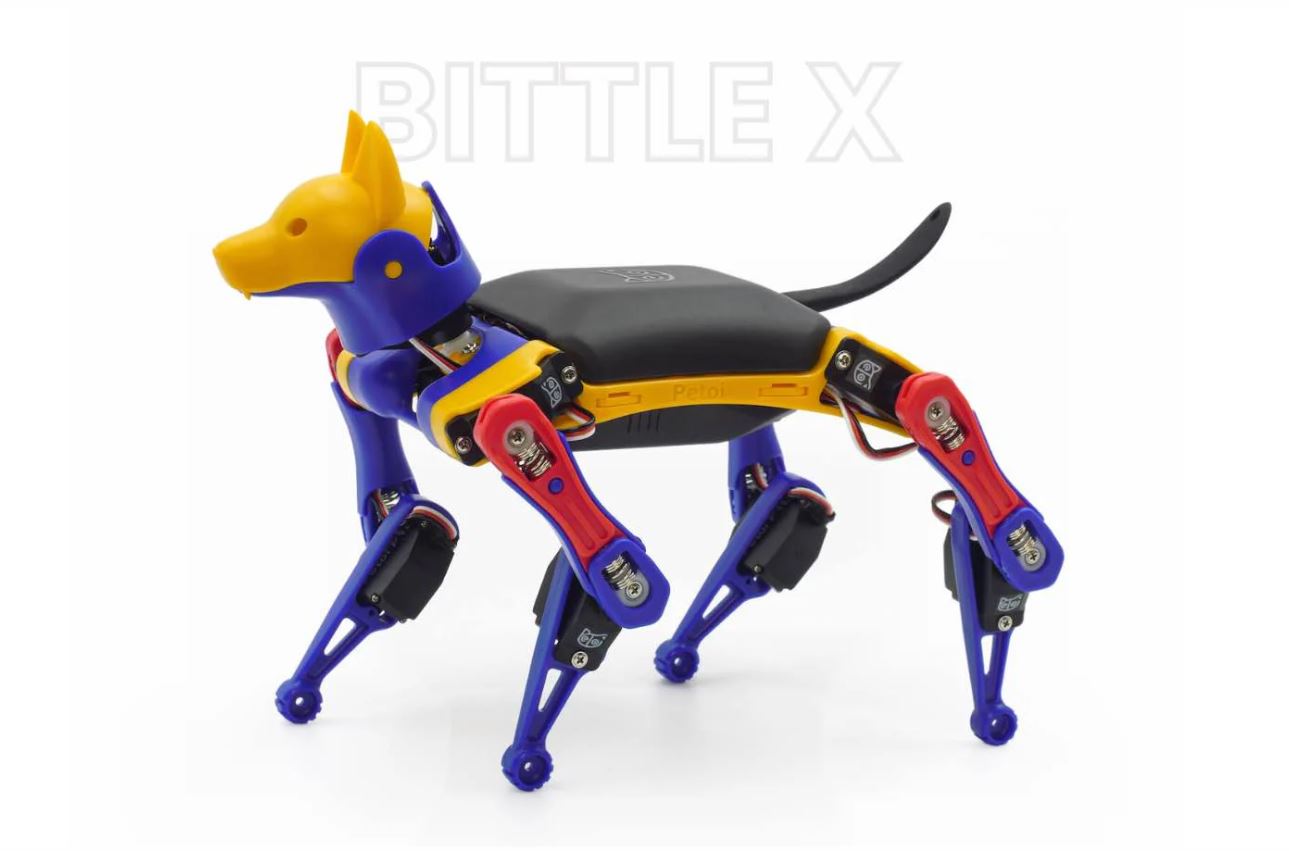

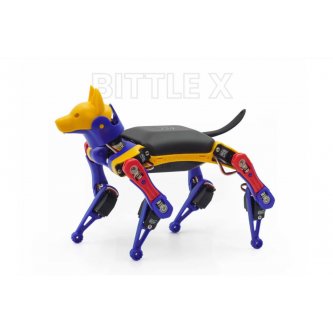

Petoi Bittle X V2 Pre-Assembled Dog Robot

Bittle X V2 Petoi - Pre-assembled Programmable Dog Robot with Lite Servomotors

Petoi's Bittle X V2 redefines the home robotics experience with its advanced quadruped design and intuitive programmability. This pre-assembled dog robot combines artificial intelligence, precision mechanics and ease of use to offer an exceptional learning and entertainment experience, accessible to beginners and robotics enthusiasts alike.

Faced with today's challenges of learning robotics and programming, traditional solutions often prove too complex or too simplistic. The Bittle X V2 responds precisely to this problem by offering a balanced platform, sophisticated enough to be stimulating but accessible enough not to put off novices. Whether you're an engineering student, a technology teacher or simply a fan of innovative gadgets, this quadruped robot is perfectly suited to your technological exploration needs.

Why choose the Petoi Bittle X V2 dog robot?

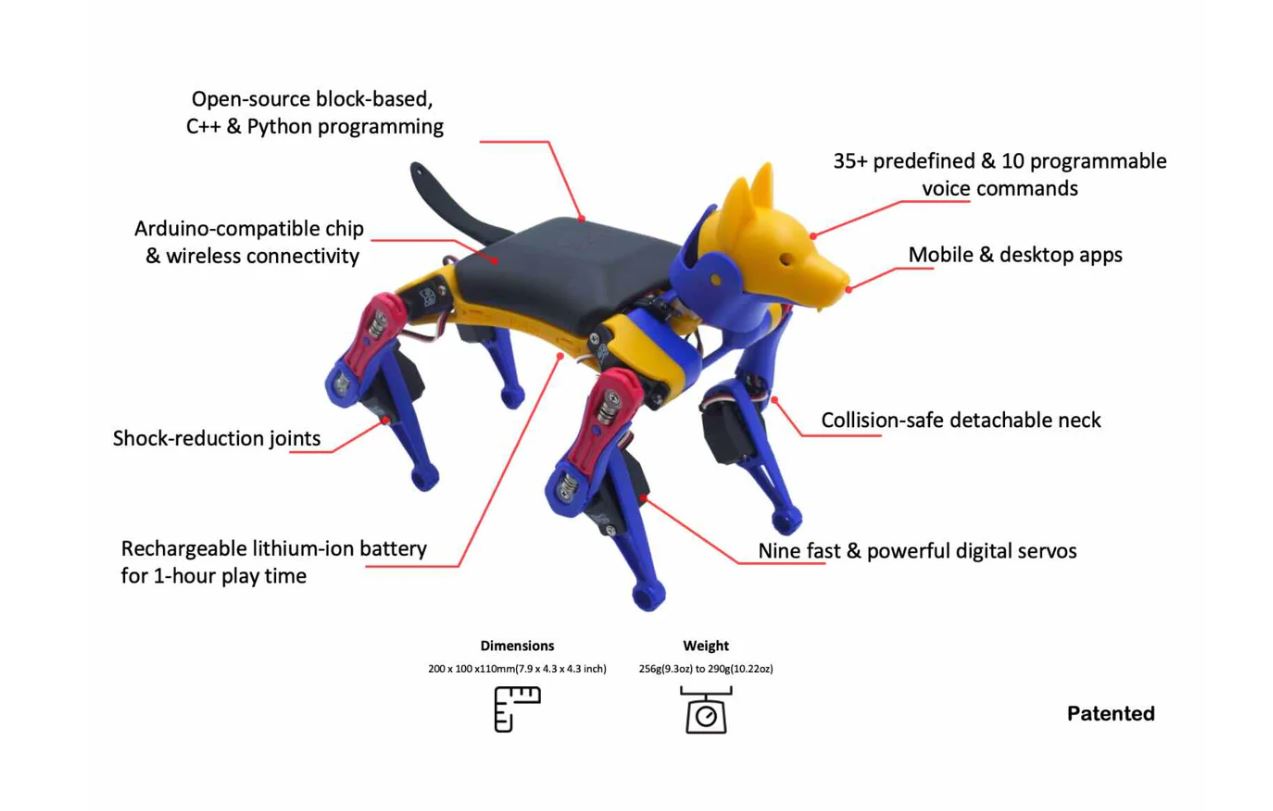

• Ultra-mobile quadruped design with 9 servomotors - Explore exceptional freedom of movement thanks to its 9 motorised joints for fluid, natural movement on different surfaces. Lite servomotor technology offers the perfect balance between performance and durability.
• High-performance ESP32 microcontroller - Benefit from impressive computing power with the Biboard featuring an ESP32-WROOM-32D (520K SRAM, 16MB Flash) and a 6-axis IMU, enabling precise movements and remarkable stability even on uneven terrain.
• Exceptional programming versatility - Adapt the robot to your skills with three programming environments: Petoi Coding Blocks for beginners (block programming), Arduino IDE for intermediates, and OpenCat Python API for advanced users.
• Integrated wireless connectivity - Control your Bittle X V2 remotely via WiFi and Bluetooth, with compatible Petoi Desktop and Mobile applications, offering a fluid and intuitive user experience with no cable constraints.
• Optimised battery life of one hour - Enjoy extended sessions of use thanks to its 7.4V 1000mAh Li-ion battery offering up to 60 minutes of autonomy, rechargeable in just 2 hours via the included micro-USB cable.
• Compact and robust design - With its dimensions of 200 x 110 x 110mm and light weight of 265-290g, your robot is easy to transport. Its brightly coloured plastic structure (black, yellow, blue, red) combines attractive looks with durability.
• Ready-to-use pre-assembled version - Start your robotic adventure straight away with this pre-assembled version from Petoi's experts, saving you the 40 minutes of assembly time and guaranteeing optimum performance right out of the box.

Technical specifications of the Petoi Bittle X V2

• Dimensions and design
  • Dimensions: 200 x 110 x 110mm (7.9 x 4.3 x 4.3 inches)
  • Weight: 265-290g (9.3-10.2 oz)
  • Frame material: Plastic
  • Colours: Black, Yellow, Blue, Red
• Motion system
  • Number of motorised joints: 9
  • Type of actuators : Lite (plastic) P1L
  • Number of actuators included: 10 (9 + 1 spare)
  • Maximum voltage: 8.4V
  • Motor type: Coreless
  • Gear type : Plastic
• Electronics and control
  • Microcontroller: Biboard with ESP32-WROOM-32D
  • Memory: 520K SRAM, 16MB QSPI Flash
  • External EEPROM: 64Kbit
  • Motion sensor: 6-axis MPU6050 IMU
  • PWM channels: 12 (can drive up to 12 servomotors)
  • Ports: 3
  • USB port: Type-C
  • Audio: Single-channel amplifier with built-in speaker
  • Connectivity: Serial UART, I2C network, Bluetooth, WiFi
  • Raspberry Pi support : Via cables or adapters
• Power supply
  • Battery type: 7.4V 1000mAh Li-ion pack (included)
  • Typical/maximum current: 2A/5A
  • Operating time: 1 hour
  • Charging time: 2 hours
  • Charger: USB 5V 1A (not included)
  • Charging cable: Micro-USB to USB (included)
• Software and applications
  • Programming environments: Petoi Coding Blocks, Arduino IDE, OpenCat Python API
  • Compatible applications: Petoi Desktop App, Petoi Mobile App
  • Data cable : USB Type-C (included)

Petoi's Bittle X V2 is the perfect combination of cutting-edge technology and accessibility for all robotics enthusiasts. Its quadruped design with 9 servomotors, powerful ESP32 microcontroller and programming versatility make it an ideal platform for learning and experimenting. Pre-assembled and ready to use, it lets you dive straight into the fascinating world of interactive robotics.

Don't miss the chance to discover quadruped robotics with this fun and educational technological companion. With its Petoi quality guarantee and active community of developers, you're investing in an enriching experience that will grow with your skills.
