Micro Maqueen Plus V2 Educational Robot micro:bit
The Maqueen Plus V2 is the latest iteration of the STEAM Maqueen Plus educational robot, offering a variety of enhanced features to strengthen its capabilities. With additional expansion ports, a larger capacity power supply and a more robust body, the Maqueen Plus V2 is able to accommodate a wider variety of peripheral components such as the HuskyLens AI camera and Maqueen mechanics kits.
This makes it ideal for teaching STEAM to primary and secondary school students, as well as for extracurricular exercises and robot competitions.
Micro Maqueen Plus V2 Micro:bit Educational Robot
The Maqueen Plus V2 is the latest iteration of the STEAM Maqueen Plus educational robot, offering a variety of enhanced features to strengthen its capabilities. With additional expansion ports, a larger capacity power supply and a more robust body, the Maqueen Plus V2 is able to accommodate a wider variety of peripheral components such as the HuskyLens AI camera and Maqueen mechanics kits.
This makes it ideal for teaching STEAM to primary and secondary school students, as well as for extracurricular exercises and robot competitions. In addition to all the features of the Maqueen Lite, the Maqueen Plus V2 offers an even wider range of flexible features and superior overall performance.
Micro Maqueen Plus V2 VS Micro Maqueen Plus V1
- Two versions to choose from: 4 AA batteries and one 18650 battery

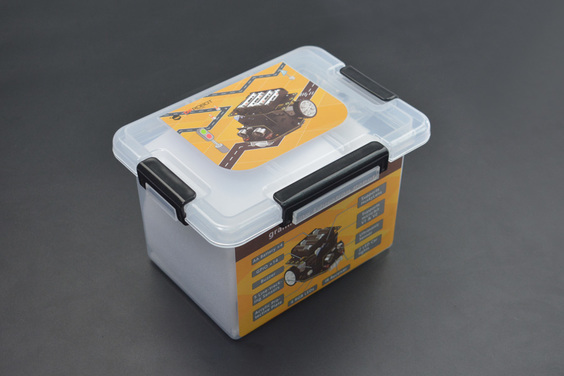

- New plastic box with a deeper base, enough room for the assembled car.
- Frosted acrylic protection plate on the bottom, more durable and reliable.
- Number of line tracking sensors reduced from 6 to 5, more convenient for programming and optimizing line tracking codes.
- Uses motors with the same parameters as the old Maqueen, for stable and smooth operation.
- The ultrasonic sensor is replaced by the SR04, which is easier to install.
- Added 4 RGB mood lights to the base, the RGB car lights have been replaced by LEDs
- Removal of the less useful magnetic encoder
Features of the DFRobot Micro Maqueen Plus V2
- No complex assembly, you can start in minutes
- More IO expansion ports: 3.3V IOx7, 5V IOx3, I2Cx3
- 5 reliable and flexible line tracking sensors
- Larger body, more flexible expansion methods
- Two versions to choose from: AA battery and 18650 battery
- The AA battery version is compatible with 1.2V NiMH or 1.5V alkaline batteries, while the 18650 battery version is compatible with 18650 3.7V batteries.
- Works well with the HuskyLens AI camera
- Rich peripherals: IR receiver, LED car lights, RGB mood lights, buzzer, ultrasonic sensor, etc.
- Frosted acrylic cover plate on the bottom
- Storage box with a deeper base to provide sufficient space for the assembled Maqueen Plus car
Caractéristiques techniques du Micro Maqueen 2 pour micro:bit
- Power Supply:MBT0021-EN: 1.2V AA Ni-MH battery x 4
- Support micro: bit V1 and V2
- N20 All-metal Gear Motor x 2
- Motor Reduction Ratio: 1:150
- Motor Rated Rotation Speed: 133 rpm
- Buzzer x 1
- 5V IO (P0 P1 P2) x 3
- 3.3V IO (P0 P1 P2 P8 P9 P12 P16) x 7
- 3.3V I2C x 2
- 5V I2C x 1
- Large Size LED Car Lights x 2
- RGB Ambient Lights x 4
- Line-tracking Sensor x 5
- Line-tracking Sensor with One-key Calibration
- IR Receiver x 1
- SRO4 Ultrasonic Module x 1
- Dimension: 136mm×65mm/5.35×2.56"
- Programming Platform: Mind+, MakeCode
- MakeCode Library Address: https://github.com/DFRobot/pxt-DFRobot_MaqueenPlus_v20

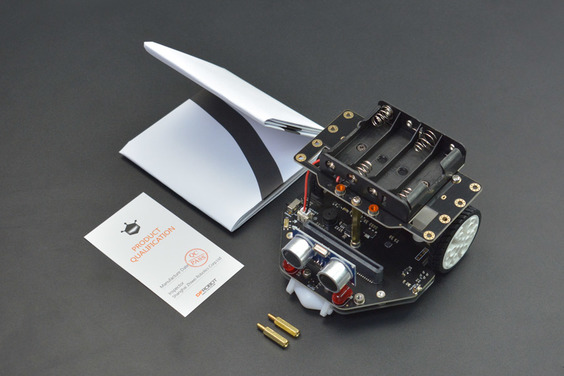

- Maqueen Plus V2 (AA battery) Vehicle body x 1 (Note: the motor, vehicle wheel, support wheel, and battery panel have been installed before delivery)
- H-SR04 Ultrasonic Sensor x 1
- Line-tracking Map x 1
